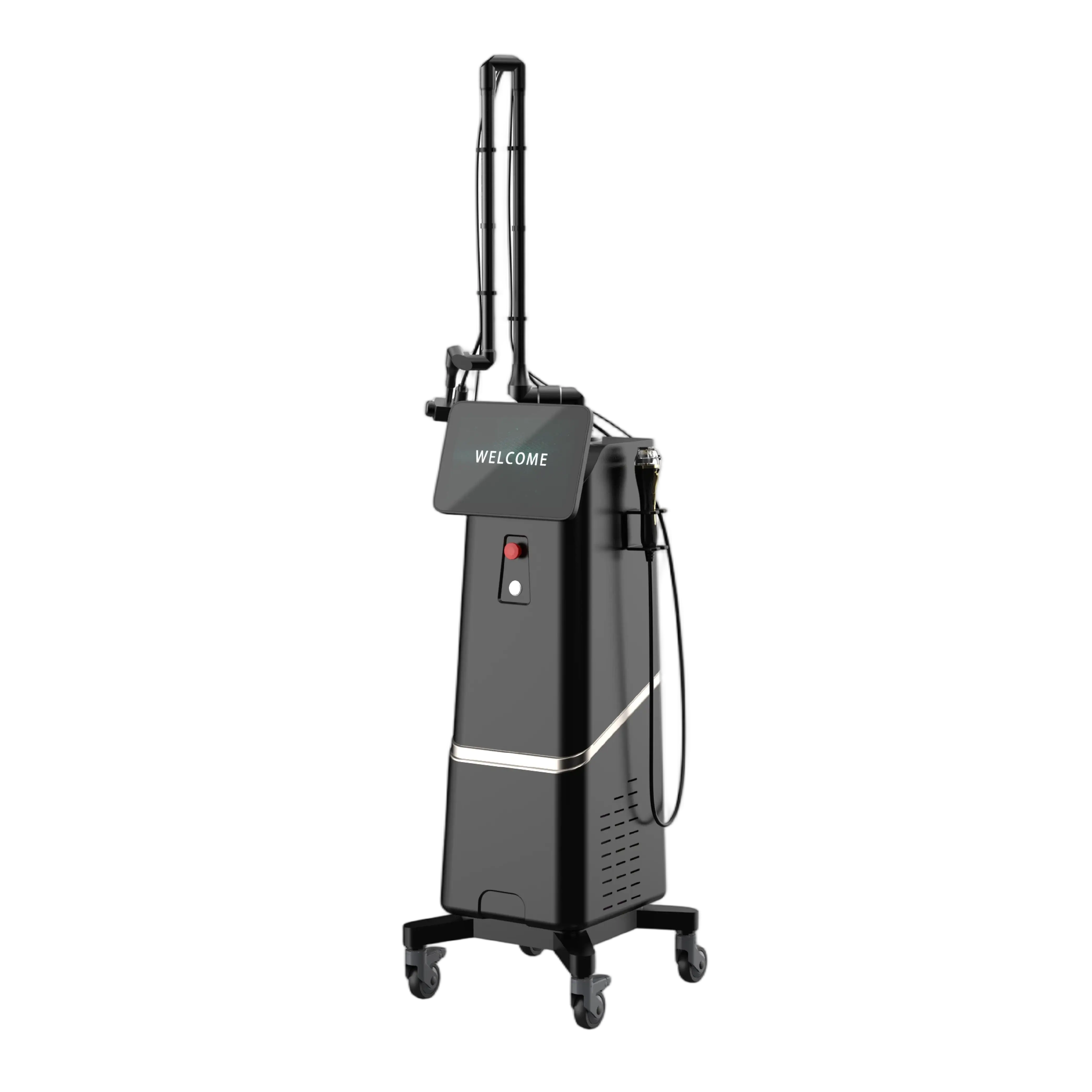

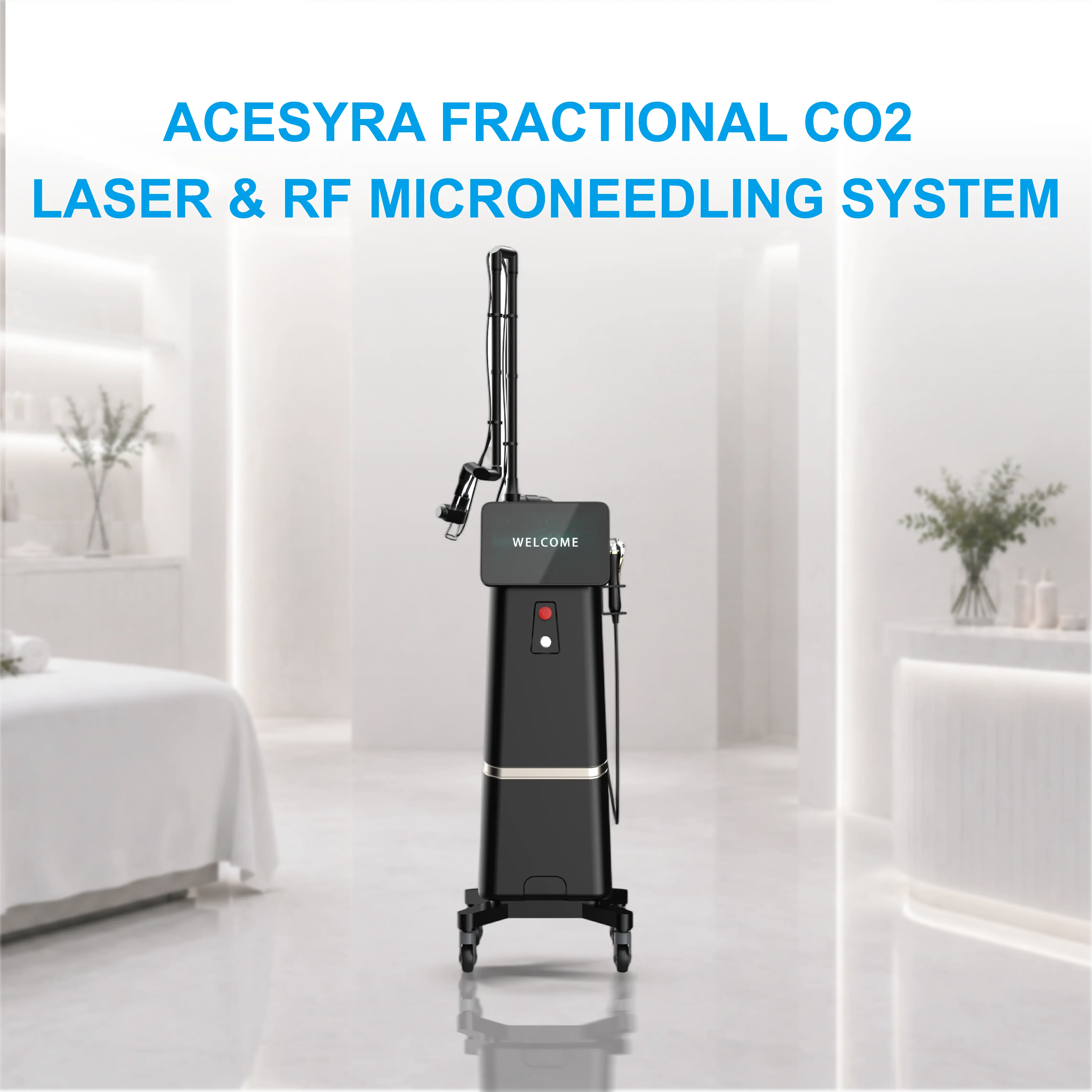

Acesyra Fractional CO₂ Laser & RF Microneedling System

Specifications

• Product Name: Acesyra Fractional CO₂ Laser & RF Microneedling System


• Model: L300


• Product Type: Fractional CO₂ Laser and RF Microneedling Platform


• Display: 12.1" LCD Touchscreen


• Interface Languages: English and Chinese


• Total Rated Power: 500 VA


• Voltage: AC 220 V ±10%, 50 Hz


• Cooling System: Circulating Water Cooling


• Unit Dimensions: 16.5" × 16.5" × 45.3" (42 × 42 × 115 cm)


• Net Weight: 88.2 lbs (40 kg)

• Fractional CO₂ Laser

  • Laser Wavelength: 10,600 nm

  • Laser Output Power: 1–30 W

  • Spot Size: 100 μm

  • Scan Size: 0.16" × 0.16" to 0.79" × 0.79" (4 × 4 mm to 20 × 20 mm)


  • Dot Spacing: 0.004"–0.102" (0.1–2.6 mm)


  • Dot Pulse Width: 0.1–10 ms


  • Dot Pulse Interval: 1–5,000 ms


  • Pulse Energy: 0.1–300 mJ


  • Activation: Foot Pedal

• RF Microneedling

  • RF Frequency: 1 MHz


  • RF Output Power: 50 W


  • Cartridge Options: 10-Pin, 25-Pin, 64-Pin, and Nano


  • Adjustable Depth: 0.008"–0.138" (0.2–3.5 mm)


  • Working Time: 100–500 ms


  • Energy Levels: 10–150


  • Operating Modes: Fixed and Cycle


  • Vacuum Levels: 2

• Warranty: 36 Months


• Logo Customization: Support
